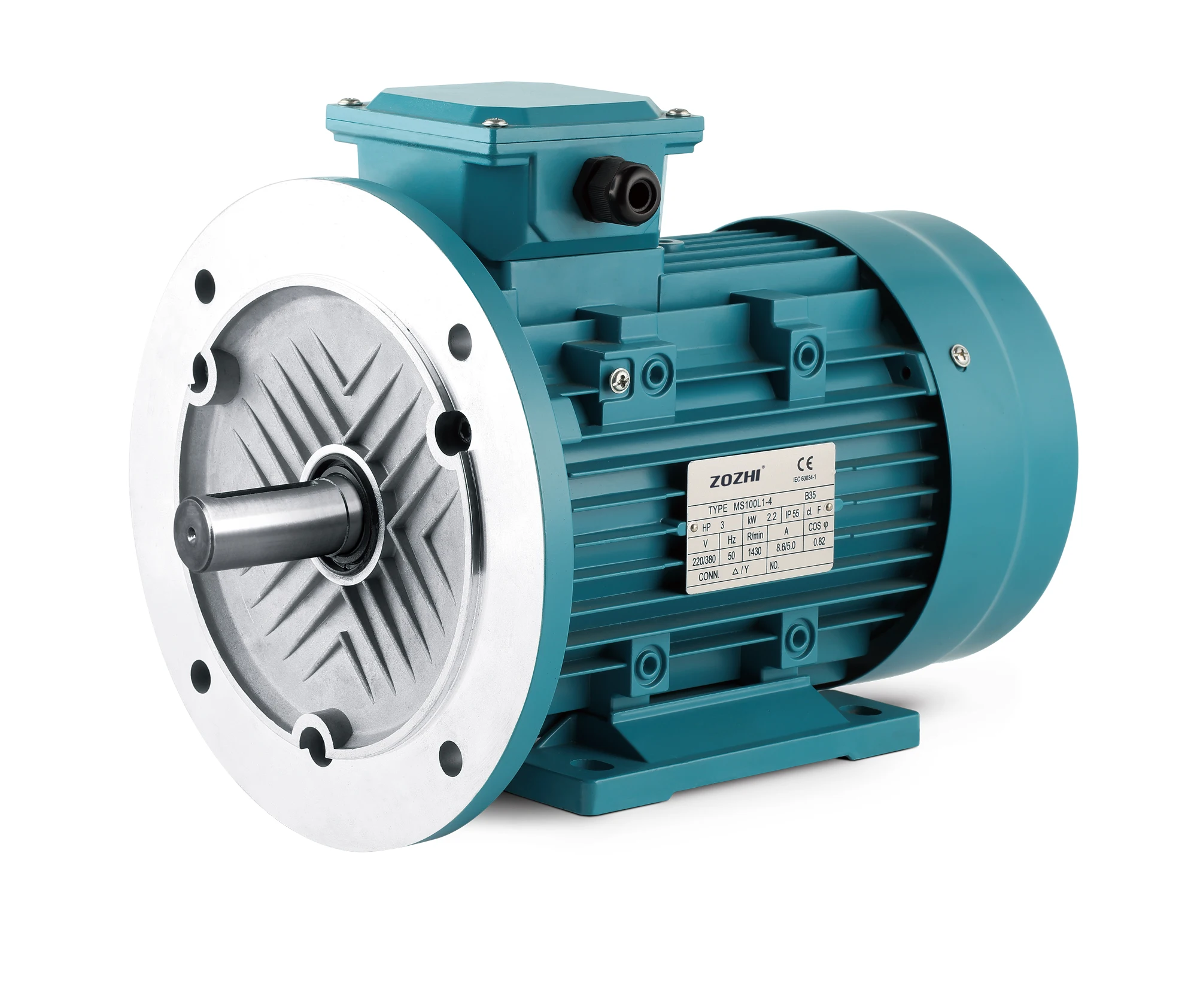

Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade

Brand Name : ZOZHI

Model Number : MS112M2-4

Place of Origin : CHINA

Certification : CE

MOQ : 2

Price : USD158

Packaging Details : CTNS/VENEER CASE

Delivery Time : 7 DAYS

Payment Terms : 100% before shipment

Supply Ability : 10000

Protection Grade : IP23/IP44/IP54

Cooling Method : IC411

Insulation Class : F/H

Efficiency : IE1 IE2 IE3

Ambient Temperature : -15℃-40℃

Rated Output : 0.06KW-20KW

Motor Type : Induction

Altitude : ≤1000m

Contact Now

Product descriptions from the supplier

Overview

Product Description

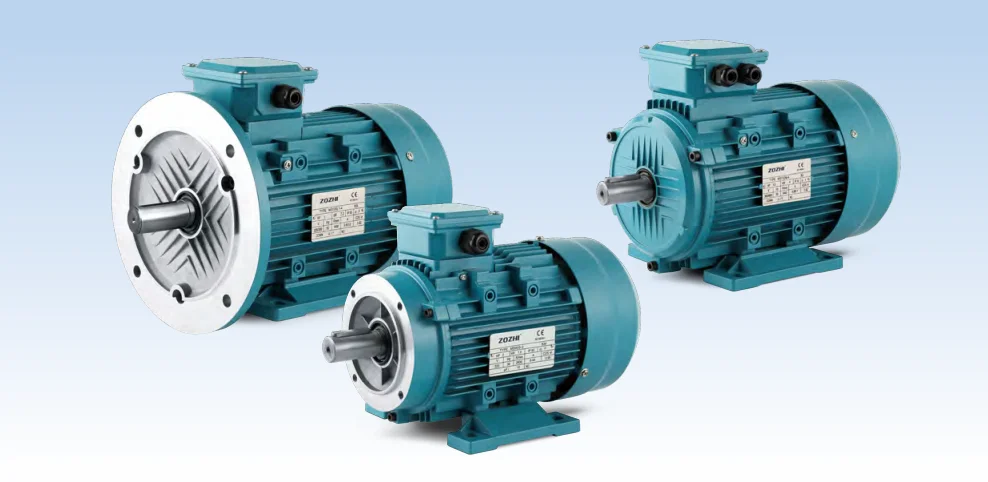

THREE PHASE ASYNCHRONOUS ALUMINUM HOUSING MOTOR
Three phase, MS (IE1/IE2/IE3) series aluminum housing motors that can be used in a multitude of applications in the commercial, industrial, building service, water treatment and agricultural fields where superior quality, and relibaility is demanded
Working Condition
Ambient temperature : -15℃≤~≤40℃
Altitude: not exceed 1000m
Rated voltage: ±5%
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
MOTER FEATURES
Utilize IP55 enclosures
Removable feet locations
Aluminum frame, end shiields and base
High strength cable gland
Shaft key and protector supplied
Good Performance
Motors made to heavy duty service factors
Can be made with stainless steel shaft
Motors made for continuous S1 duty
Utilize Vacuum impregnated
Class F insulation
High performance and efficiency
CUSTOMER BENEFITS
water dust and vermin resistant
Quiet operation
Electricity saving
Easy installation ( bolt-on feet oor brackets as required)
Corrosion resistant
Dependable
Superior life
Reliable in the country, city or factory environments
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
Technology Data
FRAME
POWER
KW HP
Voltage
(V)
Current
(A)
COSφ
P.F.
EFF.%
Speed
(r/min)
Tstart/Tn
Tmax/Tn
MS561-4
0.06
0.08
220/380
0.49/0.28
0.58
56
1400
2.3
2.4
MS562-4
0.09
0.12
220/380
0.67/0.39
0.61
58
1400
2.3
2.4
MS631-4
0.12
0.16
220/380
0.84/0.48
0.63
60
1400
2.2
2.4
MS632-4
0.18
0.24
220/380
1.12/0.65
0.66
64
1400
2.2
2.4
MS711-4
0.25
0.33
220/380
1.44/0.83
0.68
67
1400
2.2
2.4
MS712-4
0.37
0.5
220/380
0.94/1.12
0.72
69.5
1400
2.2
2.4
MS801-4
0.55
0.75
220/380
2.69/1.56
0.73
73.5
1400
2.2
2.4
MS802-4
0.75
1
220/380
3.48/2.01
0.75
75.5
1400
2.2
2.4
MS90S-4
1.1
1.5
220/380
4.74/2.75
0.78
78
1400
2.2
2.4
MS90L-4
1.5
2
220/380
6.31/3.65
0.79
79
1400
2.2
2.3
MS100L1-4
2.2
3
220/380
8.6/5.0
0.82
81
1430
2.2
2.3
MS100L2-4
3
4
220/380
11.7/6.8
0.81
82.5
1430
2.2
2.3
MS112M-4
4
5.5
380/660
8.8/5.1
0.82
84.5
1440
2.2
2.2
MS132S-4
5.5
7.5
380/660
12/6.9
0.84
85.5
1440
2.2
2.2
MS132M-4
7.5
10
380/660
15/8.6
0.85
87
1440
2.2
2.2
MS160M-4
11
15
380/660
22.3/12.7
0.85
88
1460
2.2
2.2
MS160L-4
15
20
380/660
30/17.1
0.85
89
1460
2
2.2
MS180M-4
18.5
25
380/660
36.4/20.8
0.85
90.5
1470
2.2
2.2
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
Application
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
Packing & Delivery
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade

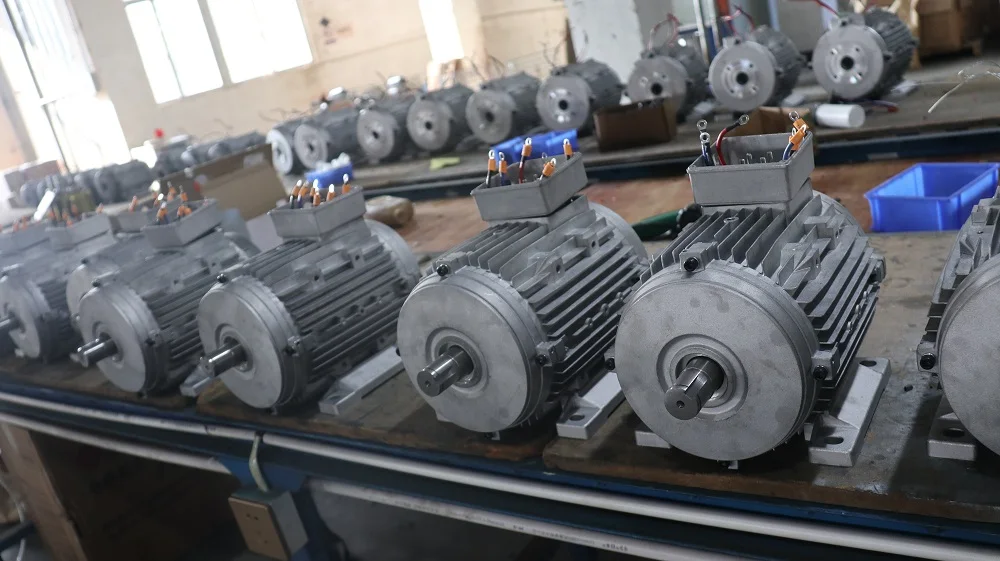

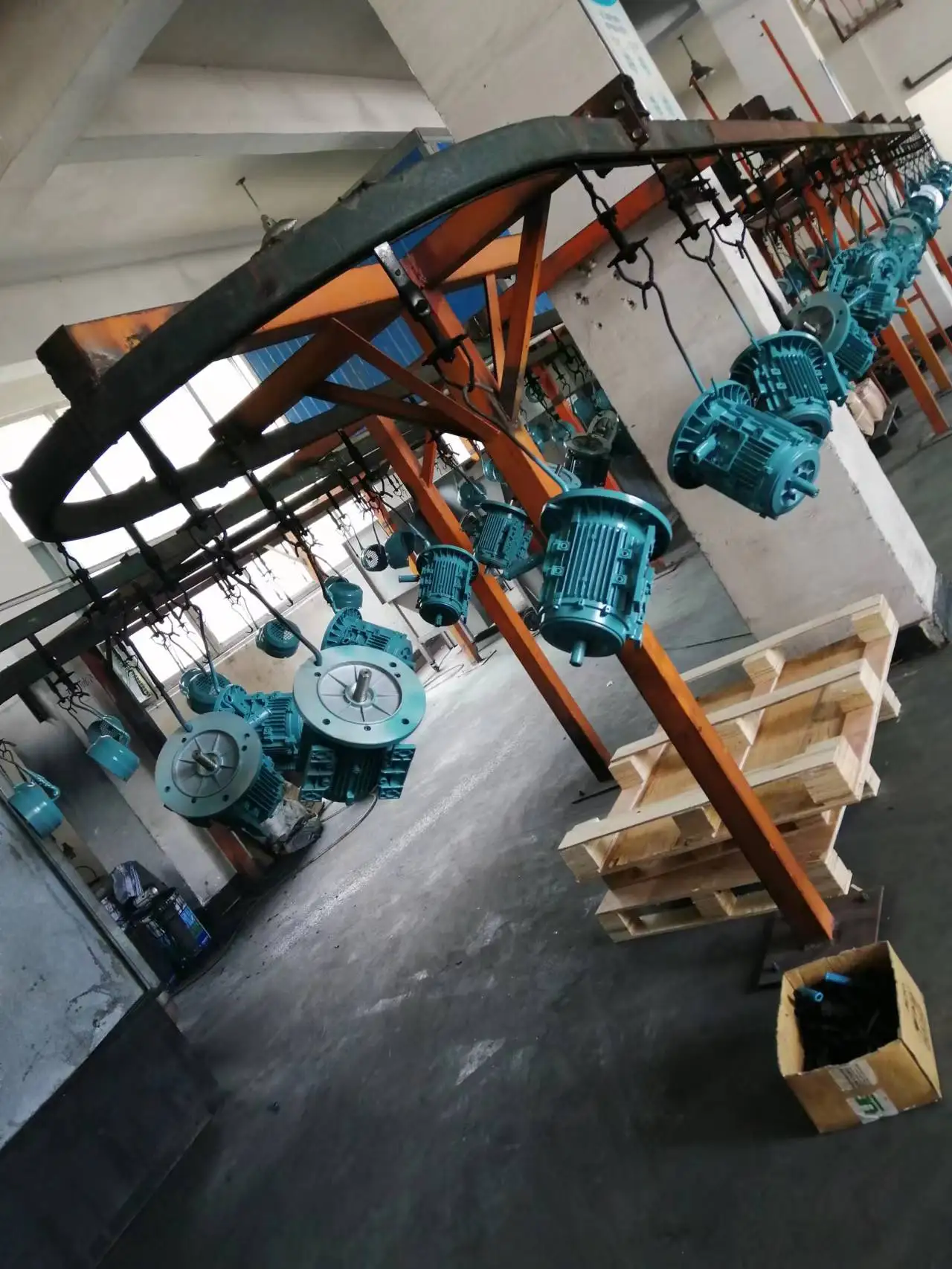

Company Profile
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
Exhibition
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
FAQ
Q1 Are you a manufacturer or a trading company? We are a manufacturer of water pump and motor in China.
Q2 Where is your factory?
Fuan city, Fujian province.
Q3 What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
Q4 What about delivery time?
Normally, 30 days after the receipt of payment.
Q5 About shipment?
By sea, By air and By express delivery.
Q6 About sample?
Available.
