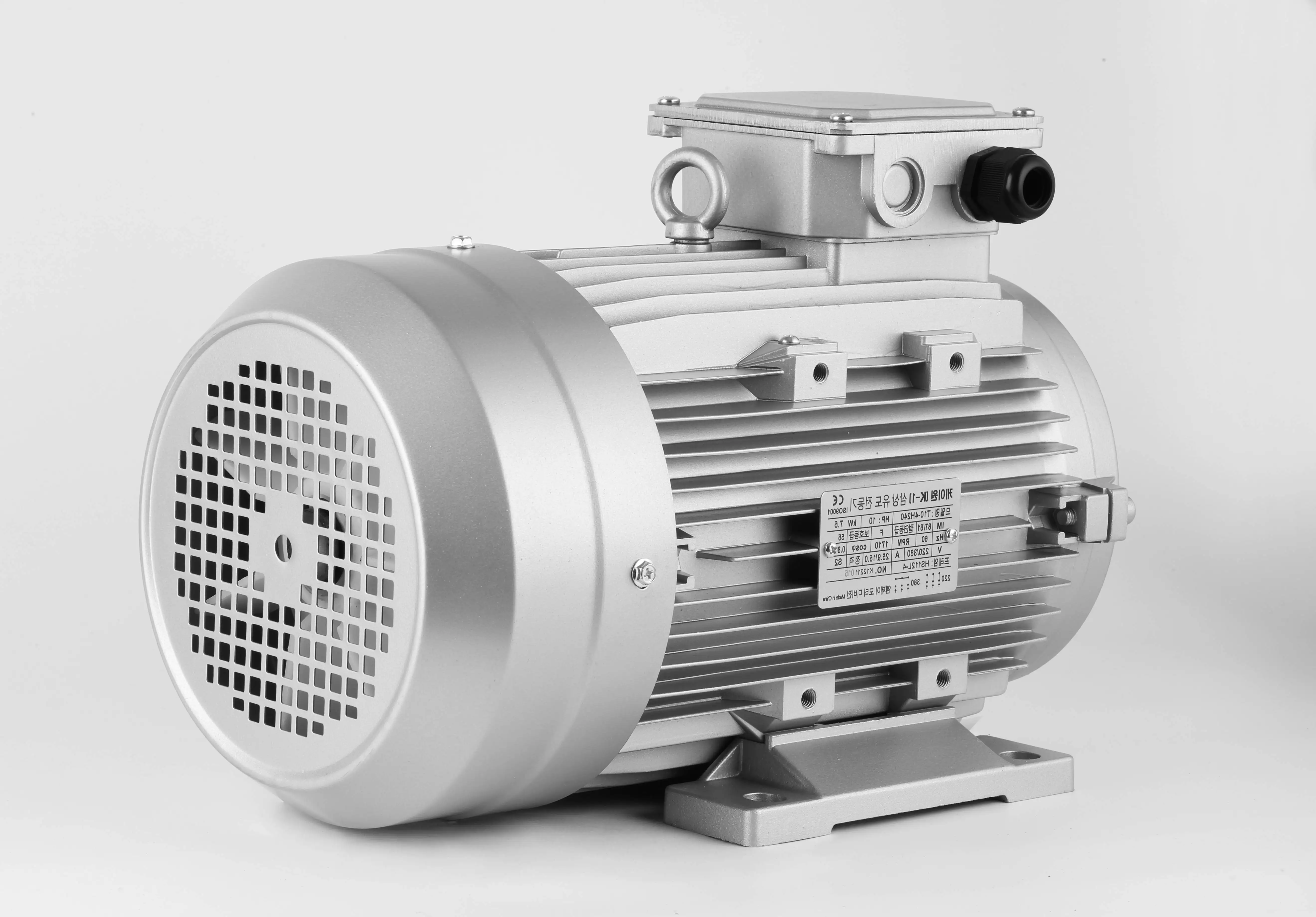

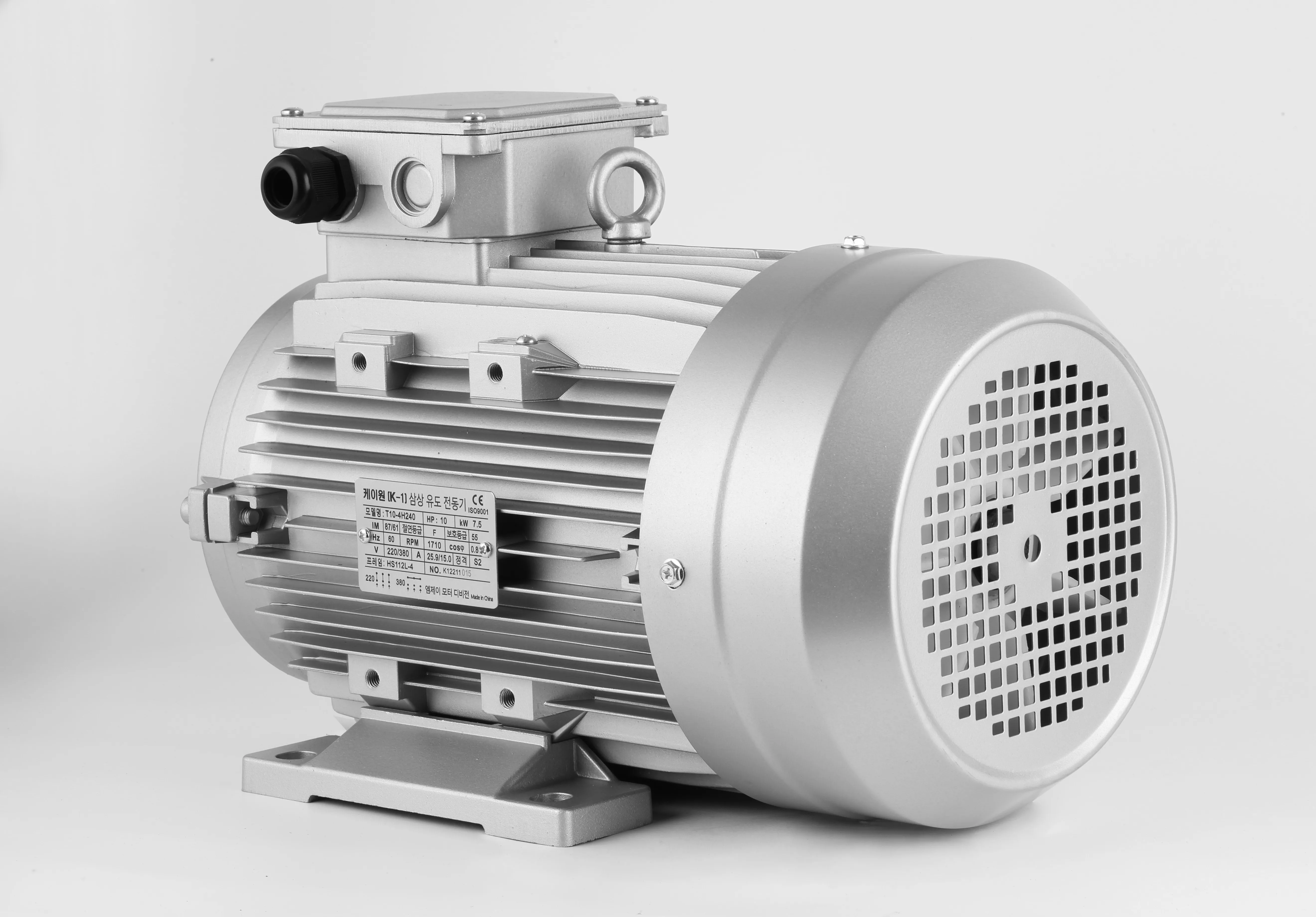

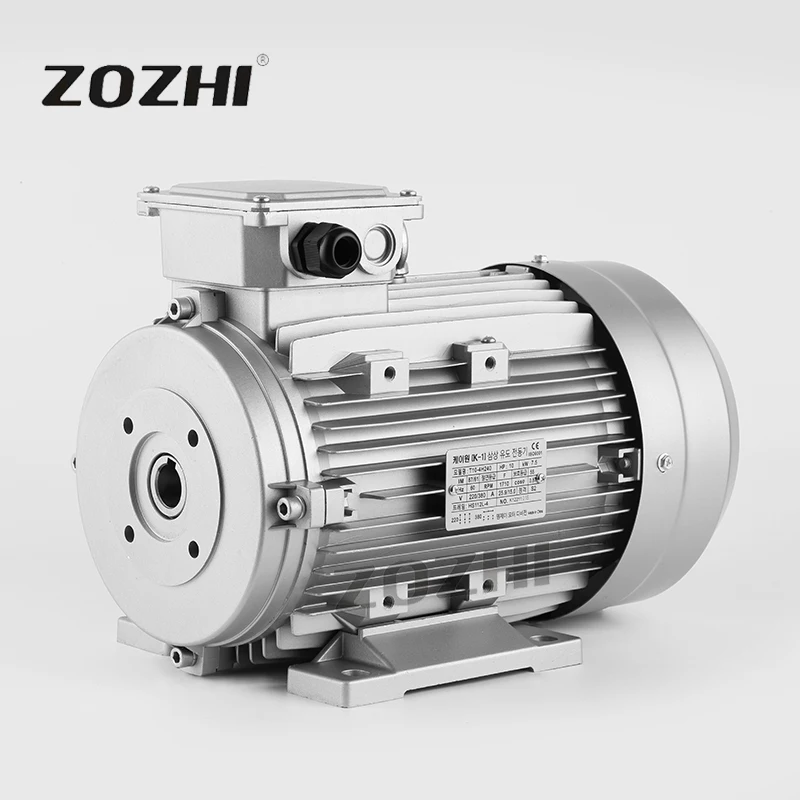

440V Rated Voltage Hollow Shaft Motor with 5.5KW Rated Power

Brand Name : ZOZHI

Model Number : HS112M2-4

Place of Origin : CHINA

Certification : CE

MOQ : 1

Price : USD165

Packaging Details : CTNS/VENEER CASE

Delivery Time : 7 DAYS

Payment Terms : 100% before shipment

Supply Ability : 10000

Ambient Temperature : -20℃~+40℃

Color : Depend On Customer

Rated Power HP : 7.5HP

Rated Power : 5.5KW

Phase : 3 Ph

Manufacture : ZOZHI Motor

Manufactured Origin : Made In China

Contact Now

Product descriptions from the supplier

Overview

Product Description
Product Name
5.5kw hollow shaft electric motor with AR interpump Comet Udor High Pressure Pump for Pressure Washers
Model
HS112M2-4
Rate Power
7.5HP/5.5KW
Efficiency
87.37% over IE2
Flange Size
87/61mm 75/90mm
Gross/Net Weight
33/32 kgs
Carton Size
36x24x32 cm
Bearing
C&U brand,two bearing(front and end)
Warranty
3 years from the shipped on-board date.
440V Rated Voltage Hollow Shaft Motor with 5.5KW Rated Power

  • Product performance description

The efficiency of HS112M2-4 7.5hp 5.5kw 3 phase hollow shaft electric motor is 87.37% over IE2 standard. but ZOZHI company keeps the same price as IE1. It is really a very cost-effective product, hurry up and order it.
440V Rated Voltage Hollow Shaft Motor with 5.5KW Rated Power
440V Rated Voltage Hollow Shaft Motor with 5.5KW Rated Power
Details Images
440V Rated Voltage Hollow Shaft Motor with 5.5KW Rated Power
440V Rated Voltage Hollow Shaft Motor with 5.5KW Rated Power
440V Rated Voltage Hollow Shaft Motor with 5.5KW Rated Power

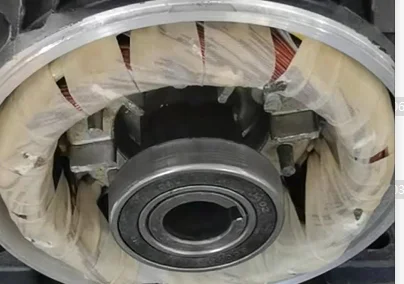

Two Bearing Design
The hollow shaft motor with front and end two bearings, it will be more higher concentricity than one end bearing.

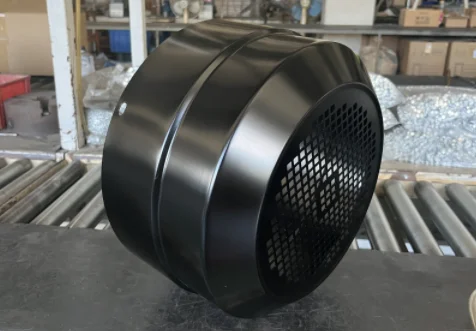

Electrophoresis
The end cover with electriophoresis. If you need the whole motor with electriophoresis, the unit price will be added 3%.

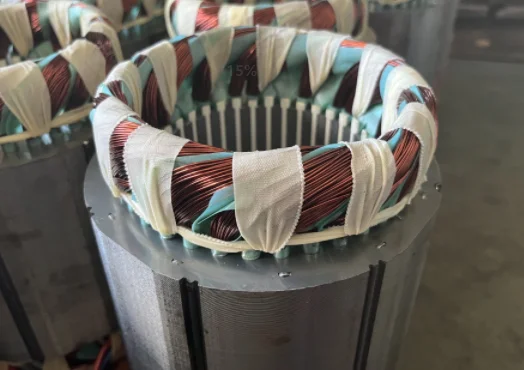

H class insulation
The stator with H class insulation, High temperature resistance is 180 degrees.
Product Usage
440V Rated Voltage Hollow Shaft Motor with 5.5KW Rated Power

    • Product usage introduction

The direct coupling between motor and high-pressure pump, ideal for pressure cleaners and washing plants,significantly reduces the overall size of the machine and at the same time provides a totally reliable and cost-efficient solution.
We have a wide range of flanges and shafts suitable for direct coupling with the majority of the pumps on the market today.

  • Description of product use effect

When the motor is assembled with the high-pressure pump, it is necessary to use relevant tools to remove the front cover of the motor, install it on the high-pressure pump, and then assemble with the motor.
440V Rated Voltage Hollow Shaft Motor with 5.5KW Rated Power
HS Series Data
Frame Size
Power
(HP/KW)
Speed
(RPM)
Power Factor
(P.F.)
Efficiency
(%)
Capacitor
(μF)
Voltage
(V)
Ampere
(A)
Single Phase 50Hz/2-pole
HSL90L1-2
2.5HP/1.8KW
2850
0.95
65
50
230
12.7
HSL90L2-2
3HP/2.2KW
2840
0.99
72
60
400
13.4
HSL100L2
3HP/2.2KW
2850
0.96
74
85
400
15.3
Single Phase 50Hz/4-pole
HSL90L1-4
2HP/1.5KW
1400
0.98
70
45
230
9.5
HSL100L1-4
2.5HP/1.85KW
1390
0.97
68
55
230
12.2
HSL100L2-4
3HP/2.2KW
1350
0.99
74
70
230
13.1
HSL100L3-4
3.5HP/2.6KW
1350
0.96
74
80
230
17.5
HSL112M1-4
4HP/3KW
1400
0.98
74
80
230
18.1
HSL112M2-4
5HP/3.7KW
1410
0.96
76
100
230
22
Three Phase 50Hz/2-pole
HS90L1-2
3HP/2.2KW
2820
0.86
78
-
400
4.9
HS90L2-2
4HP/3KW
2820
0.86
78
-
400
6.6
HS90L3-2
5HP/3.7KW
2820
0.80
83
-
400
8.6
HS100L1-2
4HP/3KW
2840
0.83
81
-
400
7
HS100L2-2
5.5HP/4KW
2850
0.86
82
-
400
8.5
HS100M1-2
5.5HP/4KW
2830
0.84
82
-
400
9.4
HS112M2-2
7.5HP/5.5KW
2840
0.85
83
-
400
11.7
HS132S1-2
7.5HP/5.5KW
2890
0.86
84
-
400
11.6
HS132S2-2
10HP/7.5KW
2900
0.86
84
-
400
15.4
HS132M1-2
15HP/11KW
2920
0.88
86
-
400
21.8
HS132M2-2
20HP/15KW
2920
0.88
86
-
400
29.3
HS160M1-2
20HP/15KW
2920
0.87
88
-
400
28
HS160M2-2
25HP/18.5KW
2920
0.87
89
-
400
34
HS160M3-2
30HP/22KW
2920
0.87
89.2
-
400
41
Three Phase 50Hz/4-pole
HS90L1-4
2HP/1.5KW
1400
0.82
78
-
400
3.4
HS90L2-4
3HP/2.2KW
1400
0.79
77
-
400
5.4
HS90L3-4
3.5HP/2.6KW
1400
0.80
78
-
400
7.4
HS100L1-4
3HP/2.2KW
1400
0.80
81
-
400
5.1
HS100L2-4
4HP/3KW
1410
0.80
81
-
400
6.9
HS100L3-4
5.5HP/4KW
1420
0.80
82
-
400
9.4
HS100M1-4
6HP/4.4KW
1420
0.82
83
-
400
10
HS112M1-4
5.5HP/4KW
1420
0.80
83
-
400
9
HS112M2-4
7.5HP/5.5KW
1430
0.82
84
-
400
12.1
HS112M3-4
8.5HP/6.2KW
1425
0.82
84
-
400
13.5
HS112L-4
9.5HP/7KW
1430
0.80
85
-
400
13.8
HS132S1-4
7.5HP/5.5KW
1430
0.82
84
-
400
11.7
HS132S2-4
10HP/7.5KW
1430
0.84
84
-
400
15.4
HS132M1-4
12.5HP/9.2KW
1430
0.90
85
-
400
17.8
HS132M2-4
15HP/11KW
1430
0.90
87
-
400
21.3
HS132M3-4
17HP/12.5KW
1430
0.88
84
-
400
26
HS160M1-4
20HP/15KW
1450
0.86
89
-
400
29
HS160M2-4
25HP/18.5KW
1450
0.86
90
-
400
34
Three Phase 50Hz/6-pole
HS90L-6
1.5HP/1.1KW
910
0.72
72
-
400
3.2
HS100L-6
2HP/1.5KW
910
0.80
74
-
400
3.9
HS112M1-6
3HP/2.2KW
940
0.80
80
-
400
5
HS112M2-6
4HP/3KW
940
0.80
79
-
400
6.9
HS132S1-6
4HP/3KW
940
0.78
80
-
400
6.9
HS132S2-6
5.5HP/4KW
950
0.79
82
-
400
9
HS132M1-6
7.5HP/5.5KW
950
0.79
83
-
400
12.4
HS132M2-6
10HP/7.5KW
950
0.79
83
-
400
16.5
HS160M1-6
10HP/7.5KW
960
0.77
87
-
400
16.5
HS160M2-6
15HP/11KW
960
0.79
88
-
400
23
440V Rated Voltage Hollow Shaft Motor with 5.5KW Rated Power
440V Rated Voltage Hollow Shaft Motor with 5.5KW Rated Power
Frame Size
Flange
Frame
M
N
S
A
AC
B
H
HC
L K
90L
75/87
90/61
7
140
238
125
90
220
270 9.5
100L
75/87
90/61
9
160
255
140
100
240
315 11
112M
75/87
90/61
9
216
326
140
132
265
330 11
132S
75/87
90/61
9
216
326
140
132
320
370 12
132M
75/87
90/61
9
216
326
178
132
320
409 12
160M
75/87
90/61
9
254
360
210
160
410
498 14.5
Related Products
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
440V Rated Voltage Hollow Shaft Motor with 5.5KW Rated Power
440V Rated Voltage Hollow Shaft Motor with 5.5KW Rated Power
440V Rated Voltage Hollow Shaft Motor with 5.5KW Rated Power

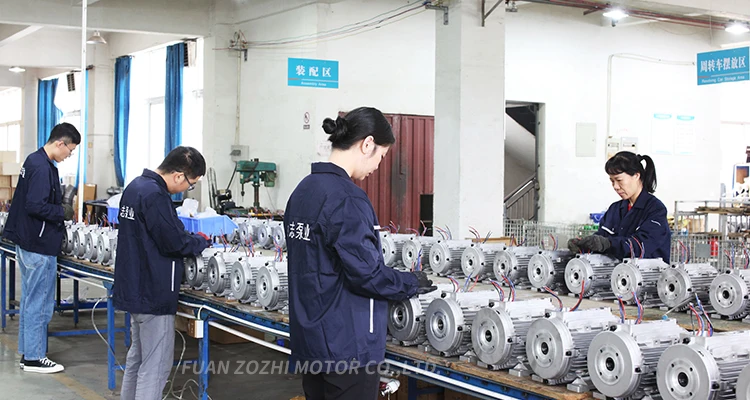

Company Introduction
ZOZHI, belonging to Fuan Zozhi Motor Co. Ltd., produces the best quality solid & hollow shaft high-efficiency electric motors, specializes in applications in Pressure Washers, Hydraulic Pumps, Swimming Pool Pumps, Gearbox Ect. In addition, the motor can also be customized according to the unique design.
440V Rated Voltage Hollow Shaft Motor with 5.5KW Rated Power
440V Rated Voltage Hollow Shaft Motor with 5.5KW Rated Power
440V Rated Voltage Hollow Shaft Motor with 5.5KW Rated Power

Warranty: 3 years

Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
FAQ
440V Rated Voltage Hollow Shaft Motor with 5.5KW Rated Power

RFQ

Q1 Are you a manufacturer or a trading company? We are a manufacturer of water pump and motor in China.
Q2 Where is your factory?
Fuan city, Fujian province.
Q3 What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
Q4 What about delivery time?
Normally, 30 days after the receipt of payment.
Q5 About shipment?
By sea, By air and By express delivery.
Q6 About sample?
Available.
